Pot strainer
The compact strainer for small nominal sizes – made entirely of stainless steel, installed hanging below the line and with a closure that opens without tools. Nine nominal sizes from DN15 to DN100 form a continuous range.
Unlike the large designs, the pot type strainer is not engineered individually but is a standard unit. What changes is the nominal size – everything else is fixed. As the manufacturer, we build every pot type strainer in this range in our own workshop.
ISO 9001 · TÜV-approved welding shop AD2000-HP0 · PED 2014/68/EU

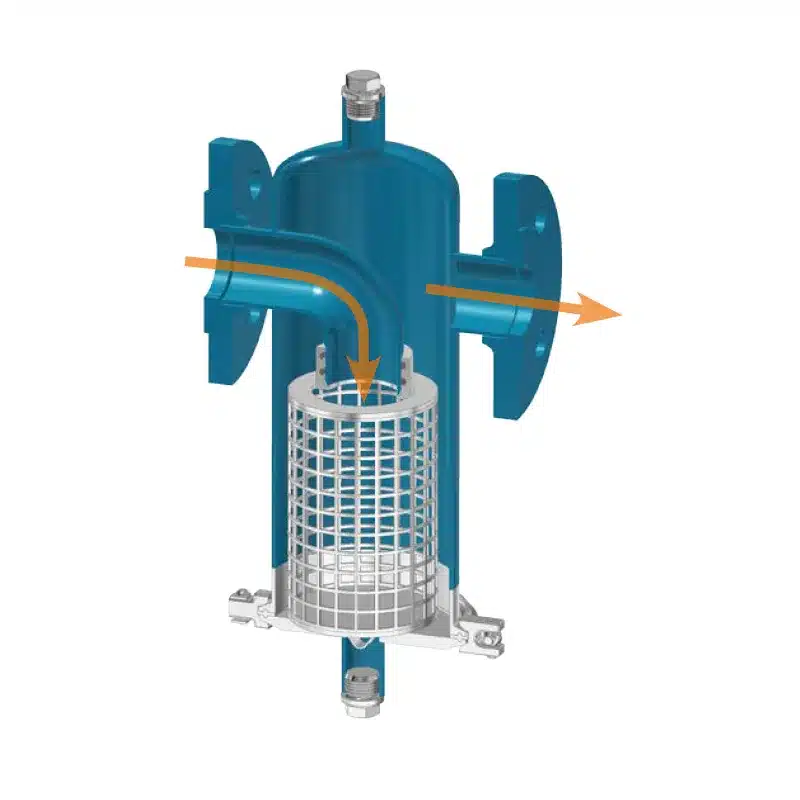

Operating principle
The medium enters from the side, flows through the strainer basket and leaves the housing on the other side. The basket hangs downwards – so the dirt collects where it comes out by itself when the strainer is opened.
This installation position is the standard and the reason for the name. Upright installation is also possible if the line requires it; a drain connection is then needed.
Installation position
The pot type strainer is available in two versions that differ in one point: on which side the clamp closure sits. This determines in which direction the strainer basket is removed – and where you need to leave clearance during installation.

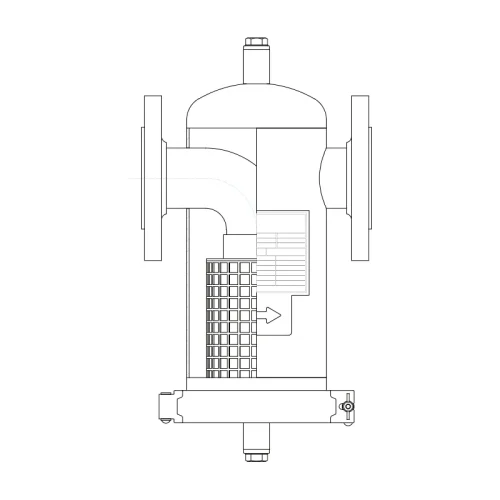

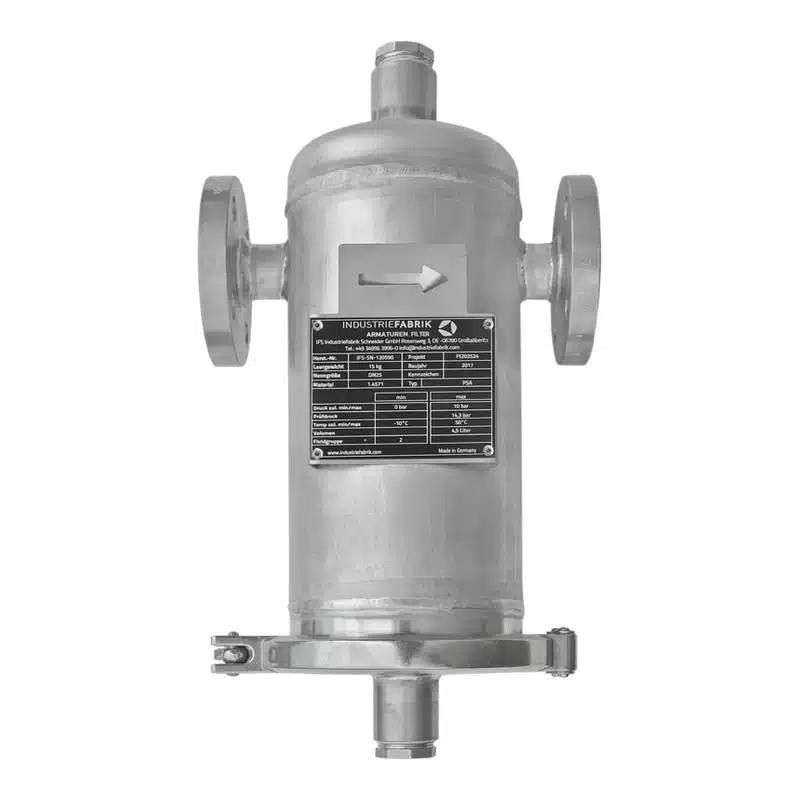

Suspended
The closure is at the bottom, inlet and outlet are above it. The medium is led downwards into the basket, flows from the inside to the outside and leaves the housing again at the top.
For cleaning, the closure at the bottom is opened and the basket is removed downwards. The clearance must therefore be below the strainer – nothing is needed above the line. This makes this version attractive where something else already runs close above the line.

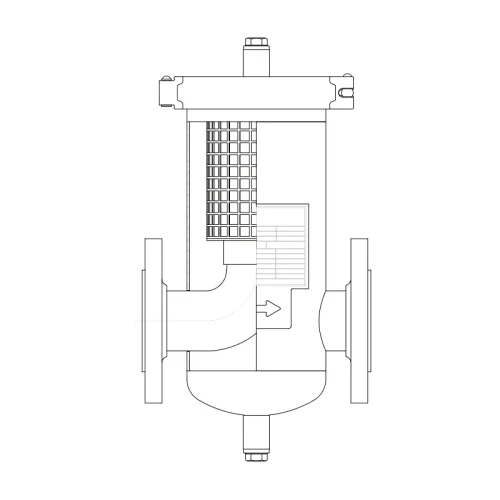

Upright
Here the closure is at the top and the connections are below it. The medium is led upwards into the basket; the flow path through the screen remains the same.
It is opened from the top, and the basket comes out upwards. The clearance above the strainer is needed – in return, everything below remains free. This version is the choice when the strainer sits close above the floor or above a drip tray.
What you should tell us

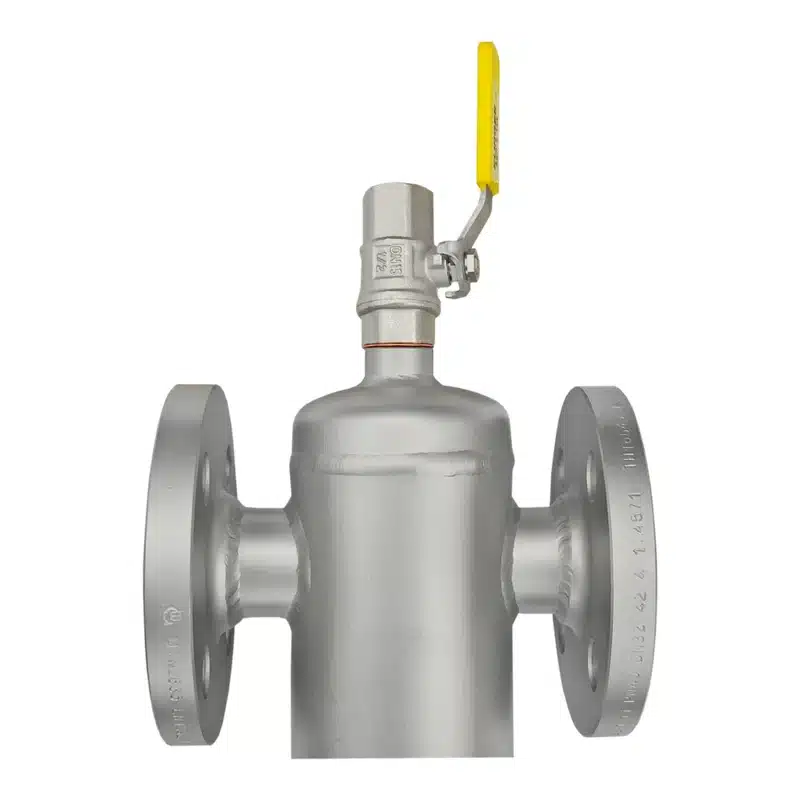

The version has to be specified when ordering, because it affects more than the closure. Vent and drain are also in a different position depending on the version. The connections must match the flow direction.
Tell us about the installation situation – ideally with a sketch or a photo of the location. When space is tight, it is often only this view that decides which version is possible at all.
Quick-opening closure

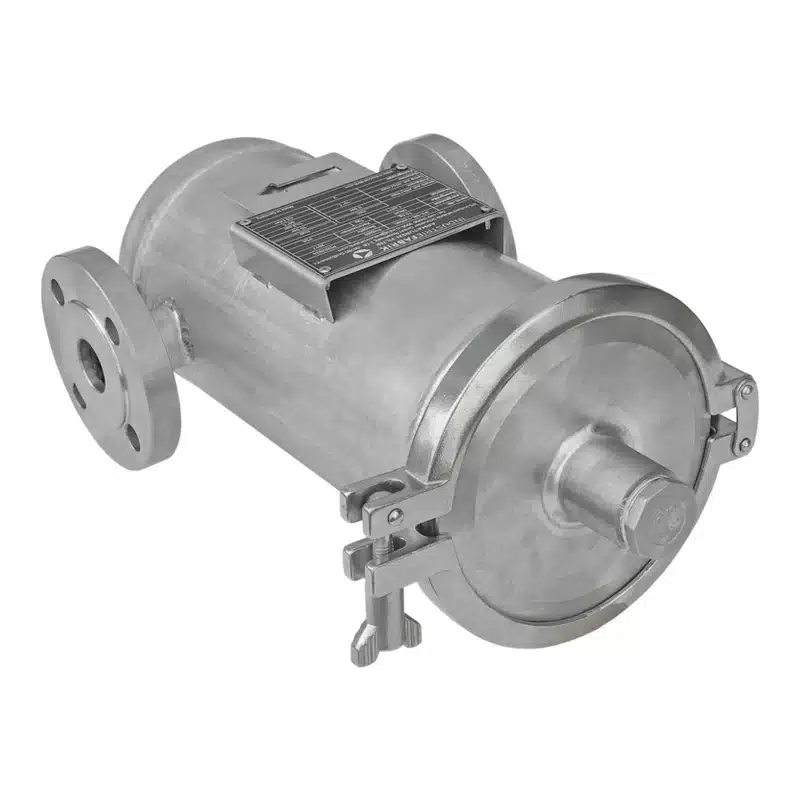

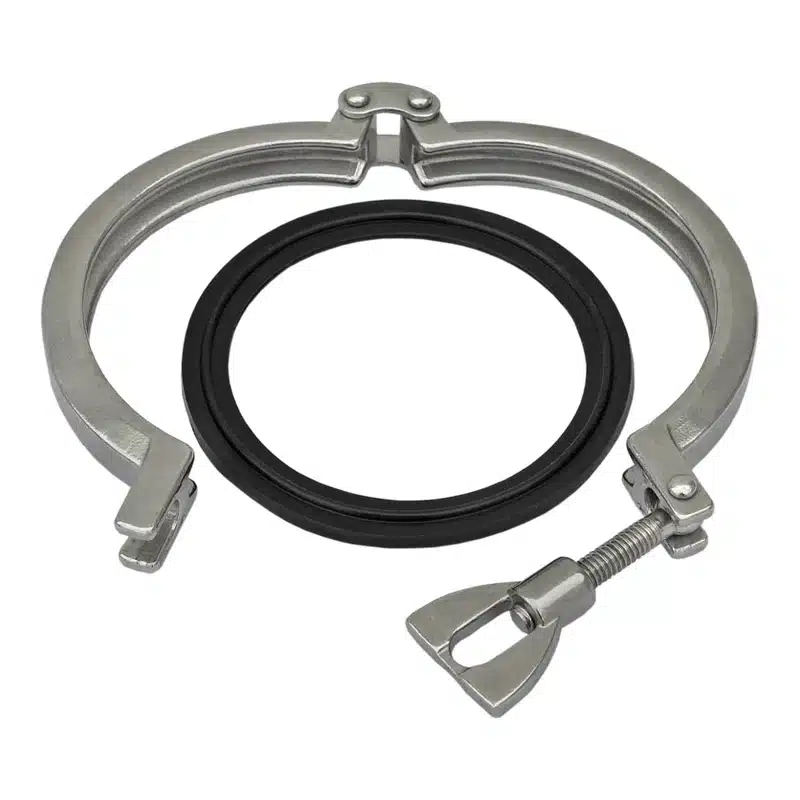

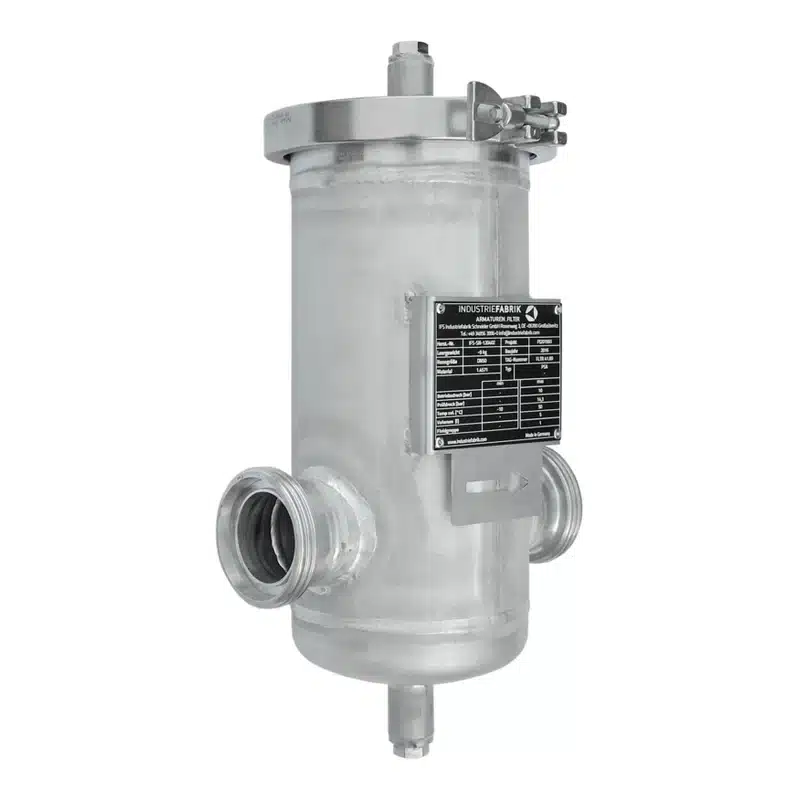

The housing is not bolted but held together by an aseptic clamp connection to DIN 32676 – a profile clamp that can be opened by hand with a wing nut. No set of spanners, no bolt circle, no searching for the right tool.
That sounds like a detail, but in practice it decides how often cleaning actually takes place. Where a screen change takes a minute, it gets done; where it takes a quarter of an hour, it gets postponed.
Series
From DN15 to DN100 the range is built the same way throughout: the same closure principle, the same material, the same pressure rating. This makes selection simple and keeps the spare parts stock manageable – a strainer basket fits exactly one nominal size and every unit of that size.
The small sizes for branch lines, sampling points and dosing lines. From DN15 with a ½-inch connection and face-to-face lengths from 130 mm – the strainer needs hardly more space than a fitting.
The most frequently requested sizes. Face-to-face lengths of 230 and 290 mm to standard, so the unit fits in place of an existing component without modifying the line.
The upper end of the range. Here the compact design reaches its limit – above that, the basket strainer with a bolted cover closure is the more sensible solution.

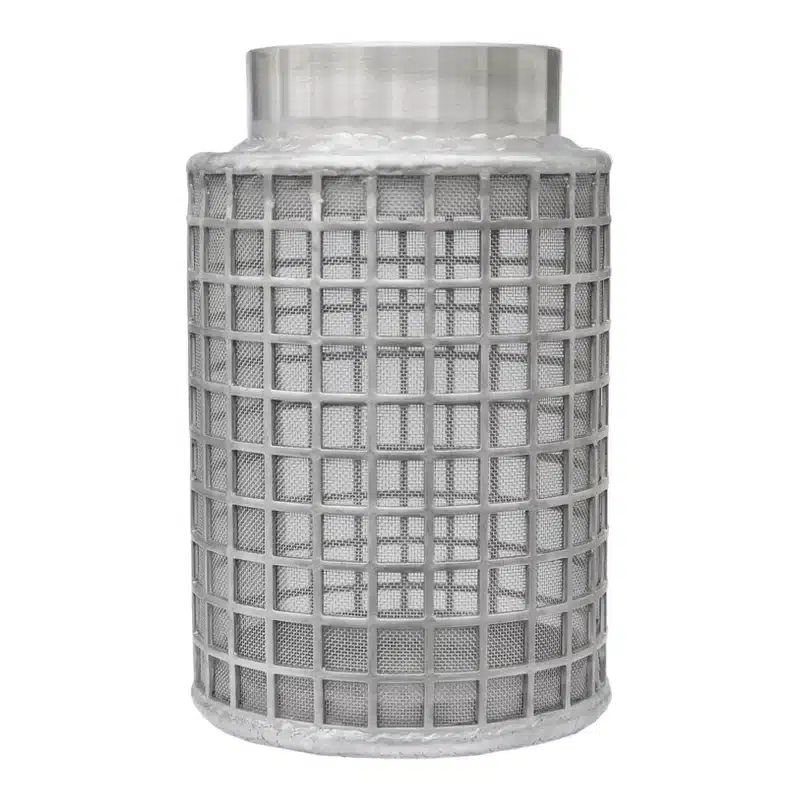

Strainer element
As standard, the pot type strainer works with a support basket in 1.4301 with square perforation Qg 10-12. The fine mesh screen in 1.4401 has a mesh size of 0.5 mm. This is finer than in the large designs, because this strainer usually sits as the last stage upstream of a sensitive component.
The range is open in both directions: from 0.05 mm to coarse perforated plate with 10 mm. The right filtration grade depends on the component downstream, not on the medium – explained under Selecting the mesh size for the pot type strainer →.
Connection and options
The design is fixed – connection, gasket and attachments depend on the installation point.
In addition, the options also known from the large designs:
Variant

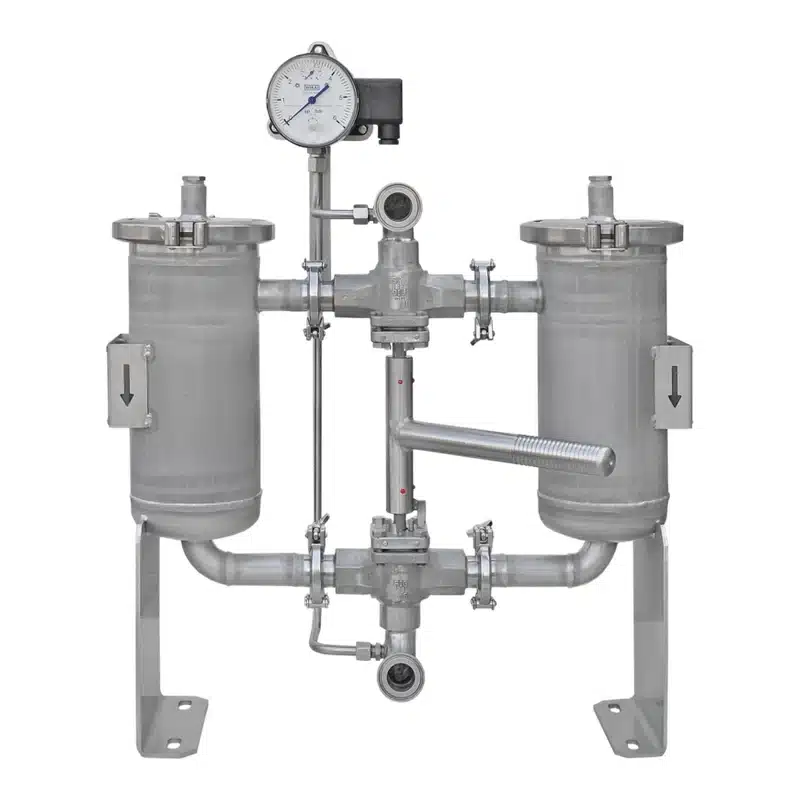

Where operation must not be interrupted even in small nominal sizes, two units can be combined into one changeover unit. One pot filters while the other is cleaned – the same principle as the large duplex strainer, only in the format of this range.

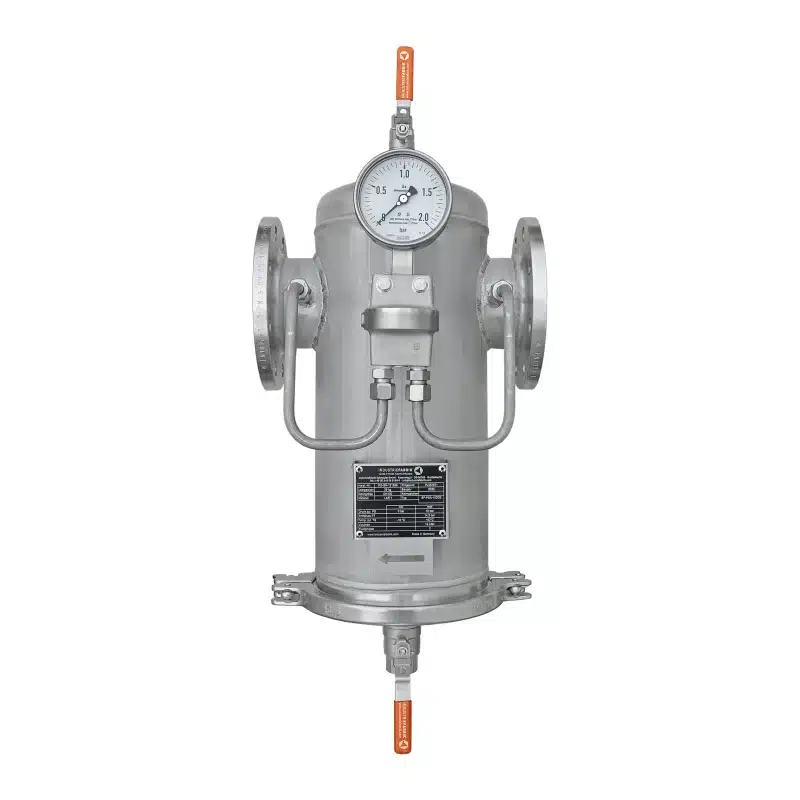

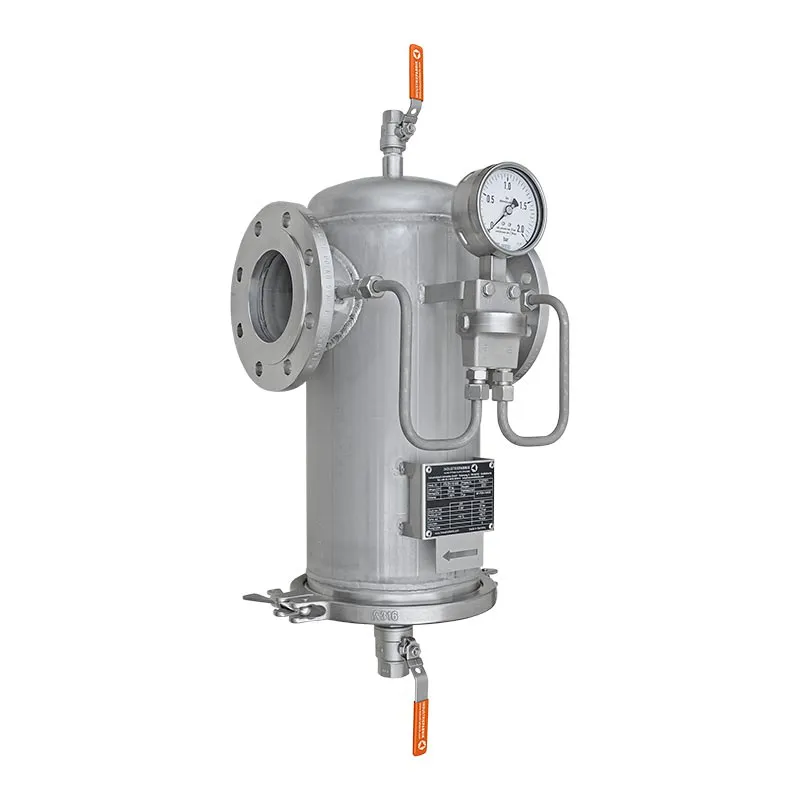

A differential pressure gauge belongs with it: it shows when to switch over. Without it, the time for the change remains a guess.
Design parameters
Values for the standard design. Different face-to-face lengths, mesh sizes and gaskets are available on request.
The temperature limit is set by the gasket, not by the housing. EPDM covers the usual range. Viton goes beyond it and is also the choice for cleaning agents and aggressive media. Tell us the medium and operating temperature, and we will select the gasket accordingly.
Dimensions

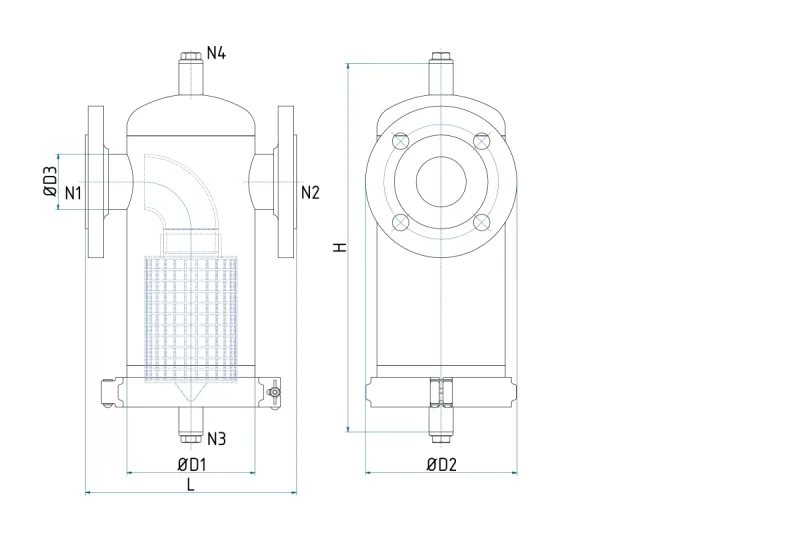

Dimensions of the standard design: L is the face-to-face length to EN 558-1 series 1, H the overall height, ∅D1 the housing diameter and ∅D3 the connecting pipe. The weight applies to the empty unit. A dimensioned drawing for your nominal size is included with the design proposal.
| Nominal size | Inch | L [mm] | H [mm] | ∅D1 [mm] | ∅D3 [mm] | Screen area [mm²] | Volume [l] | Weight [kg] |
|---|---|---|---|---|---|---|---|---|
| DN15 | ½” | 130 | 234 | 60.3 | 21.3 | 10,530 | 0.5 | 3.0 |
| DN20 | ¾” | 150 | 249 | 76.1 | 26.9 | 13,480 | 0.9 | 4.0 |
| DN25 | 1″ | 160 | 301 | 88.9 | 33.7 | 25,290 | 1.5 | 5.5 |
| DN32 | 1¼” | 180 | 311 | 88.9 | 42.4 | 25,290 | 1.6 | 7.0 |
| DN40 | 1½” | 200 | 376 | 114.3 | 48.3 | 37,040 | 2.8 | 8.5 |
| DN50 | 2″ | 230 | 401 | 139.7 | 60.3 | 42,090 | 4.7 | 11.5 |
| DN65 | 2½” | 290 | 433 | 168.3 | 76.1 | 55,140 | 7.5 | 18.0 |
| DN80 | 3″ | 310 | 547 | 219.1 | 88.9 | 85,760 | 16.5 | 23.0 |
| DN100 | 4″ | 350 | 592 | 219.1 | 114.3 | 96,630 | 19.0 | 28.0 |
Because the face-to-face lengths follow the standard, the pot type strainer can take the place of an existing component of the same nominal size without modifying the line. Note the overall height: the pot hangs downwards and needs clearance there so that the basket can be removed.
Applications
Wherever filtering takes place in small nominal sizes and frequent cleaning is needed. Typical installation points are the strainer in the heating system, the water line, and pumps, valves and measuring points. It is often the last stage upstream of a sensitive component.
A frequent case is its use as a pre-strainer. The pot type strainer catches what would otherwise clog a larger plant downstream. It is compact and quickly cleaned.
Manufacturing and documentation

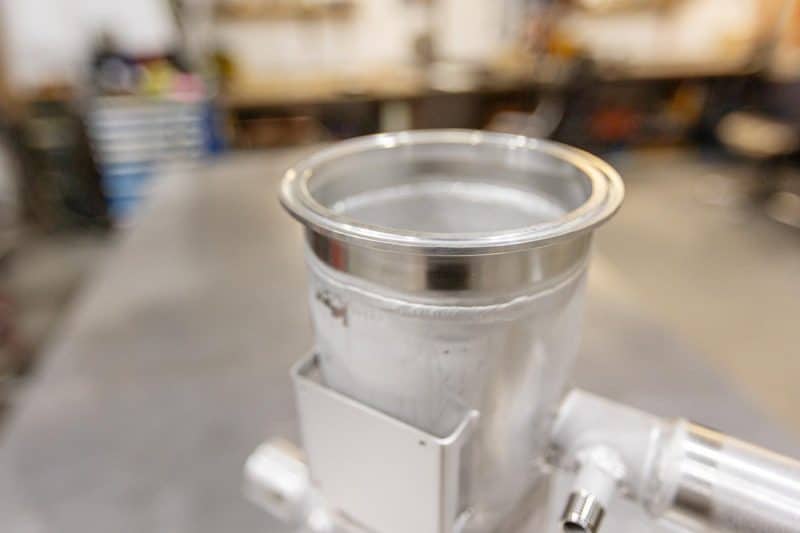

The standard range is also made in our own workshop: cutting, welding, pickling and passivating, testing. That is why a different face-to-face length, another connection or a special mesh size remains possible without turning the unit into a custom build.
We compile certificates and documentation to suit the applicable code – inspection certificate 3.1 to EN 10204, TÜV inspection, pressure test report and declaration of conformity to the PED. See Certificates and documentation for strainers →.
Enquiry
The pot type strainer is a standard unit in stainless steel 1.4571. The nominal size is enough for a quotation. You select the connection, installation position and gasket for each item. Tell us the medium and operating temperature, and we will select the gasket accordingly. Add further units with “+ further item”.
Direct
+49 34956 39960
Monday to Friday, 7 am to 4 pm (CET)
You can reach us by email at info@industriefabrik.com.
For printing
Prefer to work on paper? Fill in the form (in German) and send it back to us by email.
Yes, this is one of its most frequent applications. It sits upstream of pumps, valves and heat exchangers and retains whatever is circulating in the system – rust, scale, gasket residues. The stainless steel design and the tool-free screen change are an advantage there, because cleaning is done regularly.
In size and closure. The pot type strainer covers DN15 to DN100, is opened by hand and is a standard unit. The basket strainer starts at DN50, goes up to DN1000 and is designed for each application. Above DN100 it is the more sensible choice.
Suspended is the standard, because the dirt then collects in the pot and falls out when it is opened. Upright installation is possible if the line requires it – a drain connection should then be added, otherwise medium runs back into the line when the strainer is opened.

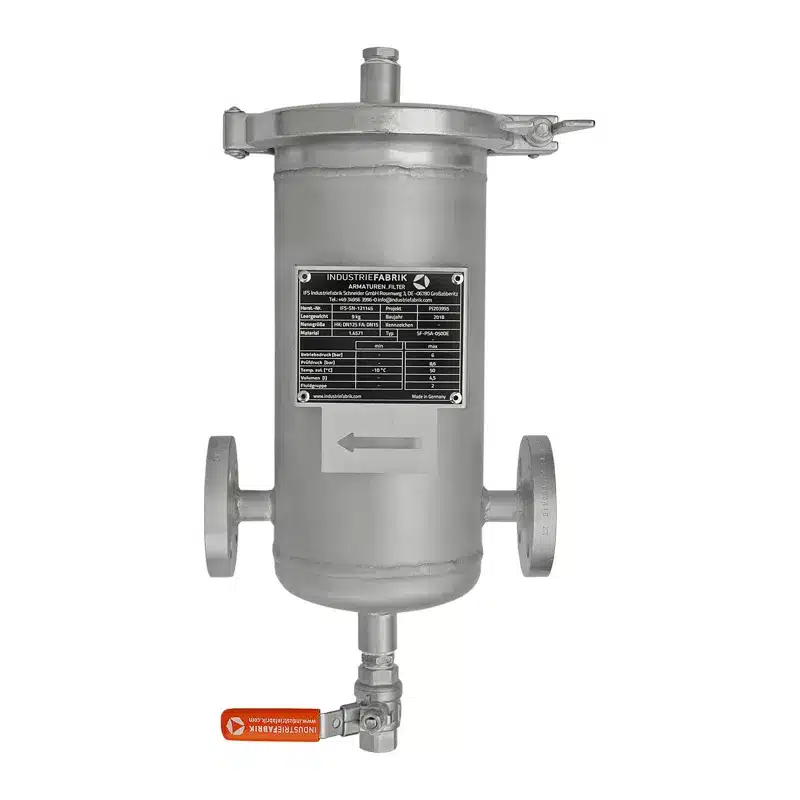

0.5 mm. The range goes from 0.05 mm to coarse perforated plate with 10 mm. Because this strainer is often the last stage upstream of a sensitive component, it is more often made in a fine version than the large designs. A filter bag can also be fitted if finer filtration is needed.
The previous series with a profile clamp closure is no longer built new. We continue to supply replacement screens and baskets for it – tell us the nominal size and the mesh size, and we will make them to match.
Yes. The quickest way is with the dimensions of the old part: outside diameter, height, edge design and the mesh size. A photo also helps.
All basic types compared: Industrial strainers →
Replacement baskets and screens for pot type strainers are made to size or to sample. We also supply replacements for the discontinued previous series. To the spare part →
Tell us the nominal size, medium, operating temperature and the required mesh size. Because the range is standardised, this is quicker than a full design – usually the nominal size and the question of what is to be retained are enough.
